Factory water supply is always unstable, power-consuming and prone to failure? We'll help you solve it completely.
Core equipment: AMX-HS7A32MR-HY001
I. Customer Background and Pain Points:
Friends who are engaged in factory management and equipment maintenance have most likely been troubled by production water supply: the water pressure on the production line fluctuates unpredictably, equipment frequently alarms, pumps break down one after another, and electricity bills remain stubbornly high.
Today, I will share with you, based on my first-hand practical experience, how to transform factory water supply from a "nuisance" into an "fully automatic worry-free matter".
Several most heart-wrenching pain points of factory water supply, so real
1. Unstable pressure, affecting production
The production line, cleaning, cooling, and painting all have high requirements for water pressure. Once it reaches the peak water usage period, the pressure drops directly, resulting in unstable product quality and frequent equipment alarms.
2. Frequent random starts and stops of water pumps, with an extremely high failure rate
The old-fashioned water supply system relies on manual switches or simple contactors, causing water pumps to start frequently. This leads to easy damage of bearings and motors, and each maintenance shutdown results in huge losses.
3. The power consumption is terrifying and the cost remains high
The motor starts and stops at the power frequency directly and cannot adjust the speed according to the water usage. Even with a small water demand, it still runs at full load, resulting in a waste of electricity charges.
4. Unattended operation is difficult, and problems are not warned in advance
Water shortage, overpressure, pipe burst, and phase loss cannot be automatically protected. Once no one is monitoring, the consequences can range from water supply interruption to pump burnout or flooding.
5. Difficult to retrofit and poor compatibility
The old system uses water tanks for water supply, while the new system intends to connect to the water network. Replacing the controller requires reprogramming, and the debugging process is both slow and expensive.
These are not minor issues; they are common problems in the water supply systems of most factories.
II. Solution Approach: Replace the entire outdated system with a single smart all-in-one machine

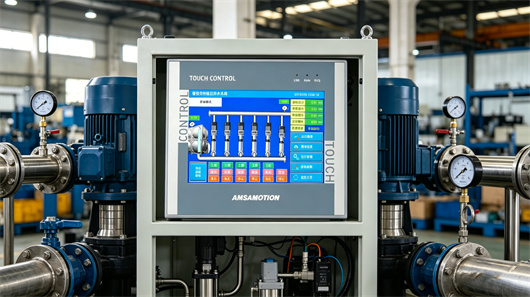

Use the AMX-HS7A smart variable frequency constant pressure water supply all-in-one machine as the water supply brain to take over 2 to 6 water pumps, achieving fully automatic constant pressure, intelligent scheduling, multiple protections, and remote monitoring. No manual on-site supervision is required, and there is no need for complex wiring. Just connect the sensors and frequency converters to start using it.
It comes with a touch control interface, supports both constant pressure and non-negative pressure dual modes, and has 18 combinations that can be switched with one button, fully matching the complex working conditions of factories.

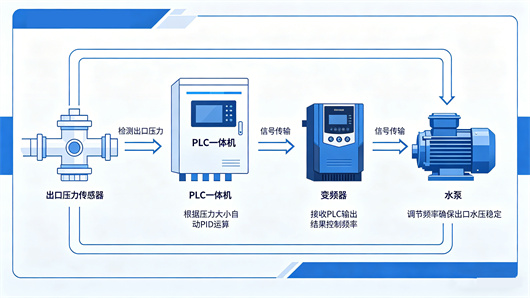

1.Pressure collection
The pressure sensor transmits the real-time water pressure of the pipe network to the all-in-one machine, supporting 0–10V/0–20mA signals, and is ready to use upon connection.
2. Intelligent Operation
The all-in-one machine uses dynamic PID for rapid adjustment. When the pressure is low, it automatically increases speed and adds pumps; when the pressure is high, it automatically reduces speed and subtracts pumps; when the water usage is extremely low, it automatically goes into sleep mode.
3. Intelligent Scheduling
The automatic rotation pump ensures that each pump operates for approximately the same duration, preventing any single pump from being overworked. In case of a faulty pump, it is automatically isolated without affecting the overall water supply.
4. Multiple Protections
All conditions such as water shortage, overpressure, pipe burst, phase loss, and phase sequence error are fully monitored. Abnormalities will be immediately protected and an alarm will be triggered.
5. Customizable Remote Monitoring
Connect to a computer or cloud platform via RS485 or network port to view pressure, operating status, and start/stop logs from the office.
Fully automatic throughout, no human intervention required, and water pressure remains stable at the set value.
III. Implementation Cases

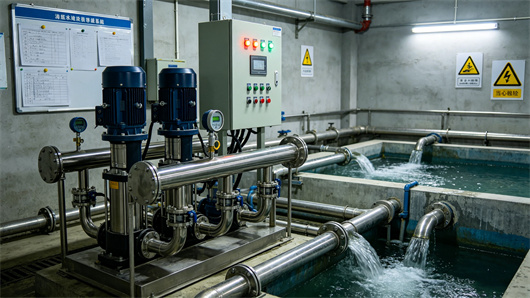

Case 1: Cooling Water Supply for a Machinery Factory
A machinery factory used to control the cooling water for its production line with three pumps manually. The water pressure was unstable, often fluctuating, causing frequent equipment alarms and requiring pump replacement every six months.
After using the AMX-HS7A:
The water pressure is now automatically and constantly maintained, eliminating water pressure-related production line shutdowns.
The pumps operate in rotation and enter sleep mode for energy conservation, doubling the pump lifespan and reducing electricity costs by over 25%.
Automatic protection against water shortage and overpressure ensures no major malfunctions throughout the year.
Case 2: Food Factory Cleaning + Production Mixed Water Supply
The water usage period in the food factory fluctuates greatly, and it is impossible for manual labor to keep up. There is also a concern about the risk of water shortage and contamination.
After the transformation:
Supports constant pressure + non-negative pressure dual mode, automatically adapting to the water pipe network and water tank;
One-click parameter setting on the touch screen, no programming required, and electricians can perform the debugging;
Historical alarm + start-stop log, problems can be traced, meeting the safety requirements of the food factory.
IV. Solution Value
1.Stable production: Constant water pressure ensures that the production line does not alarm, slow down or stop.
2.Save electricity: Variable frequency regulation + intelligent sleep mode saves 20% to 40% of electricity compared to traditional water supply.
3.Fewer faults: Automatic pump rotation, soft start and stop, and multiple protections double the pump's lifespan and significantly reduce maintenance.
4.No need for on-site personnel: Fully automatic operation, automatic protection in case of abnormality, and liberation of labor.
5.Easy to upgrade: Compatible with 2 to 6 pumps, 18 modes can be switched with one button, and old systems can be upgraded quickly.
V. Final Summary
The AMX-HS7A intelligent variable frequency constant pressure water supply unit from AMSAMOTION simplifies complex water supply systems with smart touch control, dynamic PID, multi-pump linkage, dual-mode water supply, and full-scene protection.
