How can the serial port to WIFI module enable unmanned operation in the power distribution room?
Core equipment: RS232/485-WIFI M01
Friends who work as electricians and power distributors are aware that the biggest headache in a power distribution room is not the equipment, but the lack of timely monitoring, inspection, data meter reading, and abnormal detection.
Traditional power distribution rooms rely on people running, watching, and remembering, resulting in low efficiency, high risks, and high costs. Nowadays, many factories, parks, and property management companies want to be unmanned, but when it comes to renovation, they encounter difficulties such as complicated wiring, old equipment not supporting networking, protocol integration not being able to go to the cloud, and high costs.
Today, I would like to share with you a low-cost, stable and reliable mature solution: using AMSAMOTION WIFI serial server (RS232/485-WIFI M01), the voltage, current, power, energy and other data of on-site Modbus RTU power instruments are directly converted into MQTT format and uploaded to the cloud platform, quickly realizing remote monitoring, abnormal alarm and unmanned operation of the distribution room.
1、 The most real pain point of power distribution room monitoring
1. Manual meter reading is tiring, incorrect, and slow: With several power distribution rooms in a building, the monthly meter reading runs out and is prone to errors and omissions.
2. Real time data cannot be seen: voltage exceeding limits, current overload, and potential leakage hazards cannot be detected in a timely manner.
3. Old devices cannot connect to the internet: The instrument only has RS485/232 ports and does not support WIFI, Ethernet, or cloud access.
4. Difficulty in wiring renovation: The cable trench is complex, far away, and cannot be drilled, and the wired solution is basically not feasible.
5. High on duty costs: Small distribution rooms are not worth the attention of dedicated personnel, and 24-hour rotating shifts in large distribution rooms are too costly.
6. High barrier to entry for platform integration: Without knowledge of MQTT, JSON, and cloud platforms, there is no way to start going to the cloud.
2、 Minimalist solution approach: 485 instrument panel+WIFI gateway+MQTT cloud deployment
The overall idea is very clear, with three steps in place:
On site layer: Power instruments (Modbus RTU slave station) collect data such as voltage, current, power, electrical energy, harmonics, etc.
Gateway layer: Use a WIFI serial server (RS232/485-WIFI M01) to convert 485 signals to WIFI, while also converting Modbus RTU to MQTT.
flat Cloud platform layer: Data is reported to Alibaba Cloud/IoT cloud platform in JSON format, enabling remote viewing, curve analysis, over limit alarm, and remote control.
Without wiring, industrial control computers, or coding, electricians can install and configure parameters when powered on.

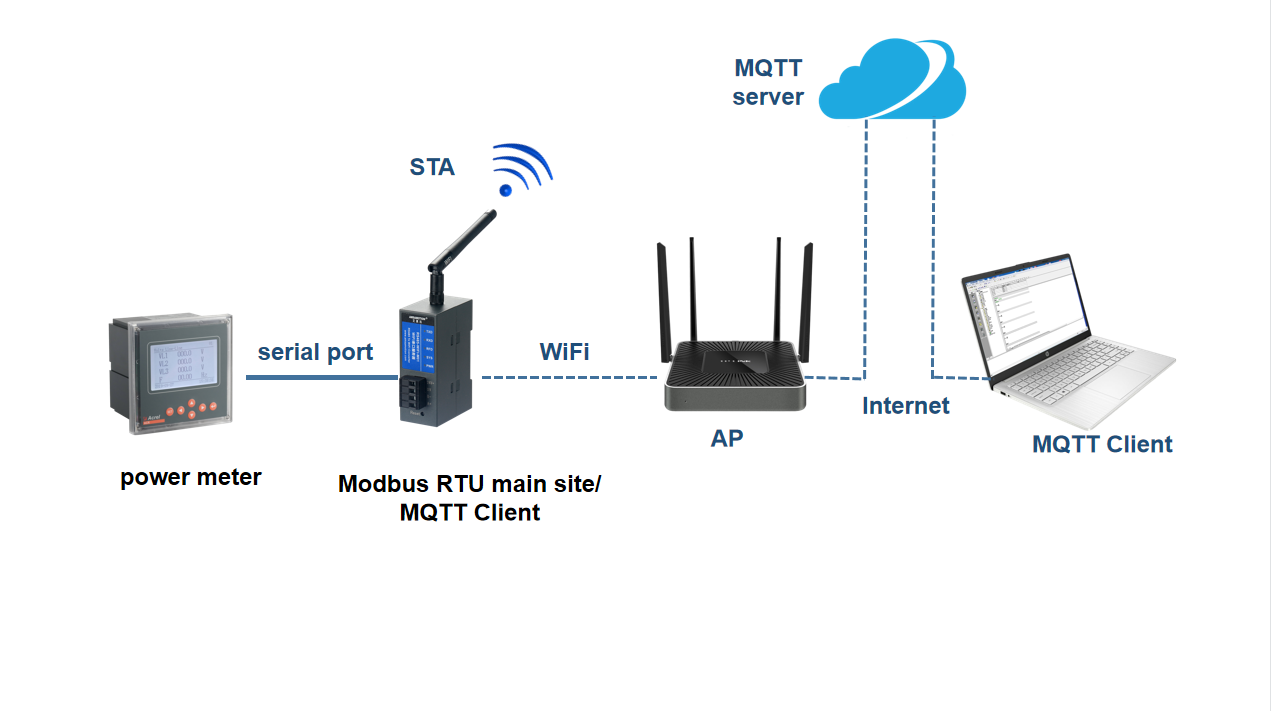

3、 Working principle:
1. Instrument collection: Connect the RS485 line of the power instrument to the WIFI serial port service (RS232/485-WIFI M01).
2. Protocol conversion: The WIFI serial server automatically packages the data into JSON format.
3. MQTT push: Through WIFI networking, report to the cloud platform using MQTT protocol.
4. Cloud processing: The platform stores, displays, and alerts, and supports remote access from mobile phones/computers.
5. Unmanned: Automatic push for abnormal situations, no need for on-site monitoring.
4、 2 real implementation cases

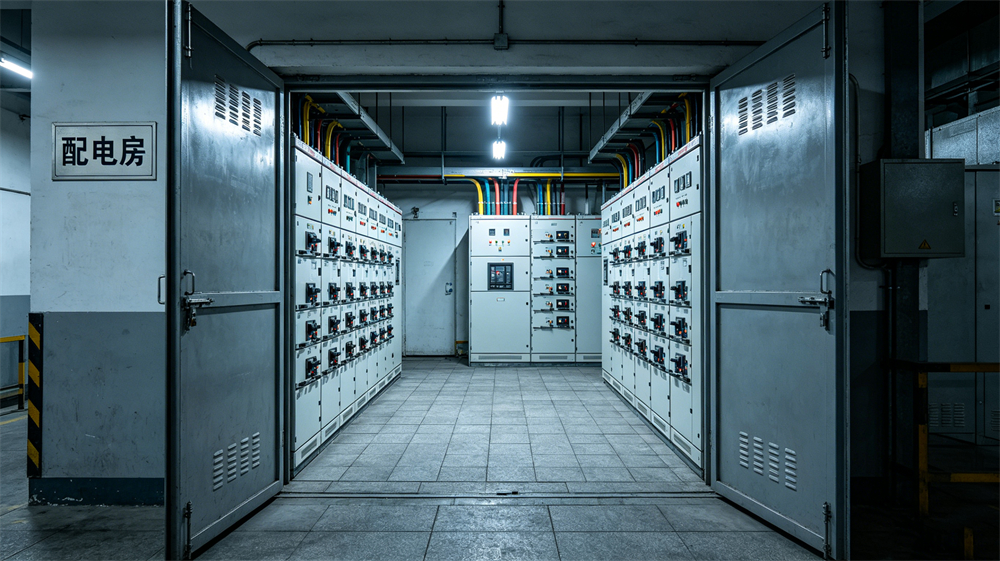

Case 1: A certain industrial park in Dongguan - Three distribution rooms, one person is enough
There are three 10kV distribution rooms in the park, distributed in different factories. Previously, each room was equipped with one on duty electrician working three shifts.
Renovation plan: Install multifunctional power instruments in the main incoming and outgoing cabinets of each distribution room. The RS485 interfaces of the instruments are aggregated to a WIFI serial server (RS232/485-WIFI M01), and the data is uploaded to the Alibaba Cloud IoT platform (MQTT protocol) through the park WIFI.
After the renovation, the voltage, current, power, power factor, and electricity data of the three distribution rooms will be displayed in real-time on the large screen in the central control room of the park and on the electrician's mobile app. Electricians have changed from three shifts to normal day shift and night shift to check their phones, and the manpower has been reduced from 9 to 3 people. Centralized monitoring, automatic meter reading, and real-time overload alarm have been achieved.
Case 2: Remote Monitoring of Pump House in a Water Plant in Hunan Province
Pain point: The water plant has four water intake pump rooms scattered by the river several kilometers away. Each pump room has a low-voltage distribution cabinet equipped with multifunctional instruments to monitor motor current, voltage, and shaft power. Previously, we relied on line patrol workers to drive around once a week to collect data. However, during thunderstorms, the motor tripped and it was often discovered several days later, causing fluctuations in water supply pressure.

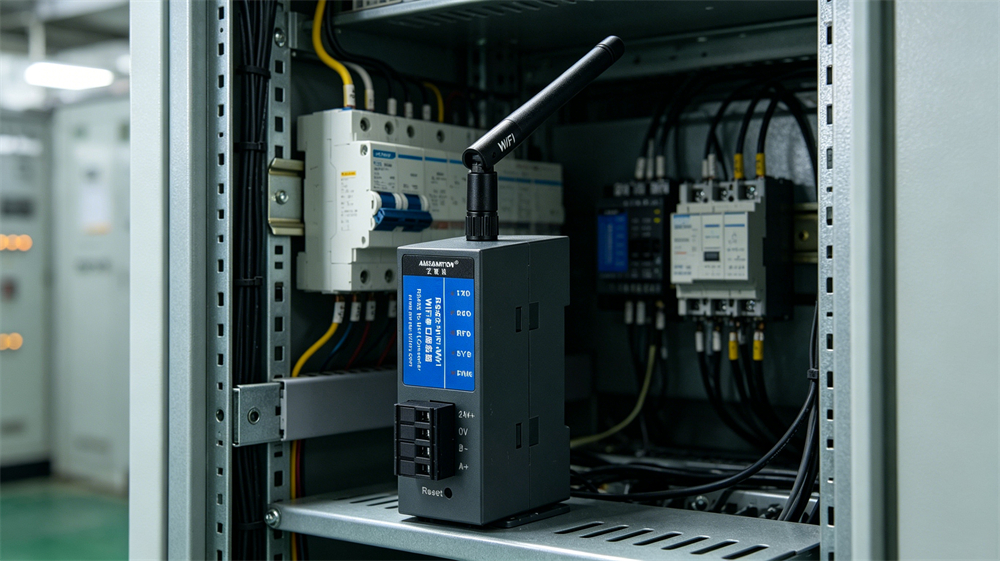

Solution: Each pump room distribution cabinet is equipped with a WIFI serial server (RS232/485-WIFI M01), and there is already a 4G router in the pump room. The module is connected to the router through Wi Fi. The WIFI serial server (RS232/485-WIFI M01) packages Modbus RTU data and sends it to the cloud platform. The upper computer of the central dispatch room subscribes to the data of each pump room through MQTT and displays it in real-time on the SCADA screen.
Effect: From weekly inspections to on-demand operations and maintenance - only sending personnel when data anomalies occur.
A lightning strike at night caused the motor in pump room B to run out of phase, and the module detected a current imbalance of>30%. Within 10 seconds, the cloud platform alarm was triggered, and the on duty personnel remotely tripped to avoid motor burnout and recover approximately 30000 yuan in losses.
The cost of fuel and labor for provincial inspection vehicles during the annual festival is about 50000 yuan.
5、 The actual value brought by the plan
1. Cost reduction: No wiring, reduced renovation costs by 70%, eliminating manual meter reading and duty.
2. Safety improvement: Real time monitoring 24/7, alarm immediately when exceeding the limit to avoid electrical accidents.
3. High efficiency: automatic meter reading, automatic statistics, automatic report generation, easier management.
4. Scalable: Supports linkage of circuit breakers, fans, and access control, upgrading to intelligent power distribution.
6、 Final summary
The unmanned distribution room is not necessarily a high-end project, but a small investment, fast landing, and truly useful essential renovation.
AMSAMOTION's WIFI serial server (RS232/485-WIFI M01) solves the problems of difficult power instrument networking, cloud migration, and wiring in the simplest way possible. By converting Modbus to MQTT, traditional distribution rooms step into the era of the Internet of Things, truly achieving remote visibility, abnormal reporting, effortless management, and zero pressure on duty.
If you are working on power distribution renovation, power monitoring, or unmanned projects, this solution is stable, mature, and cost-effective. Just use it directly.
